Beating gravity:
Safe, reliable, efficient.

Countless numbers of BANG cranes reliably perform their duties worldwide. And this is generally on a 24/7 basis, day after day, over the course of several decades. With technical expertise and a high level of develop­ment competence, we build cranes that provide superior customer benefit on all levels: with regard to economic efficiency, safety, precision, flexibility and environmental friendliness.

Simple answers to
complex questions?

Not always, but it’s worth looking into. That’s how BANG Kransysteme approaches engineering. Hardly any two cranes designed and manufactured here are alike. The process environments are diverse, and the requirements for material flow are varied.

bangkran automotive 2
Solutions for specific requirements.

The development engineers at BANG Kransysteme work closely with operators to find the best solution for their intralogistics processes. All project phases, from concept development through to installation and commissioning, are carried out entirely by our own crane specialists.

bangkran automobilindustrie 2

Shaping next generation material handling

  • bangkran cranebro operating station 1

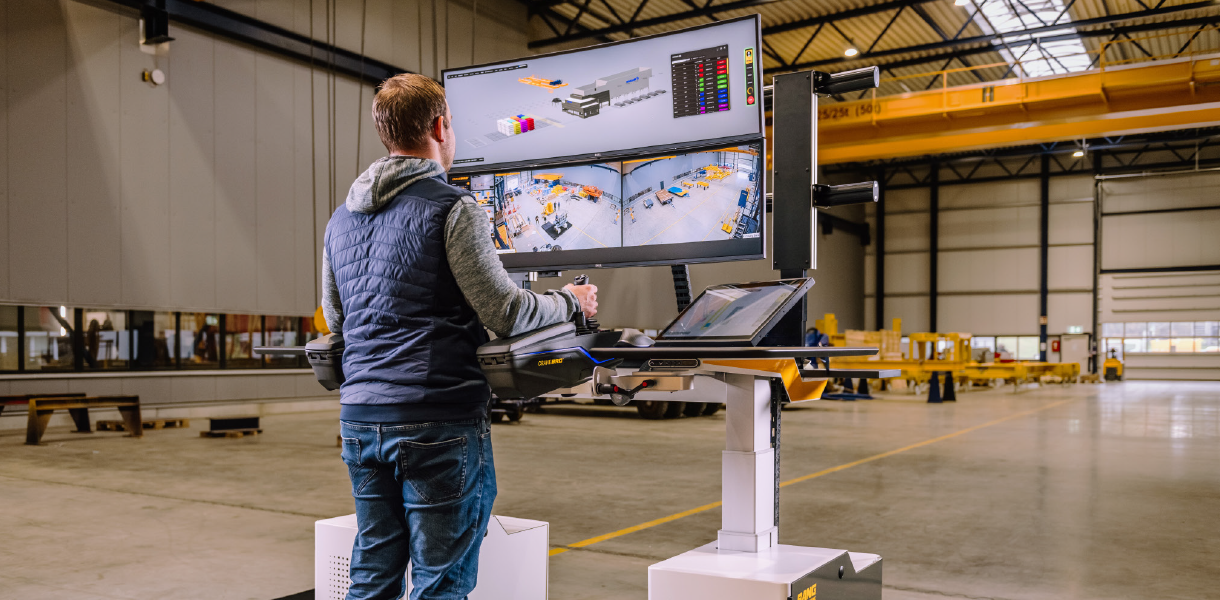

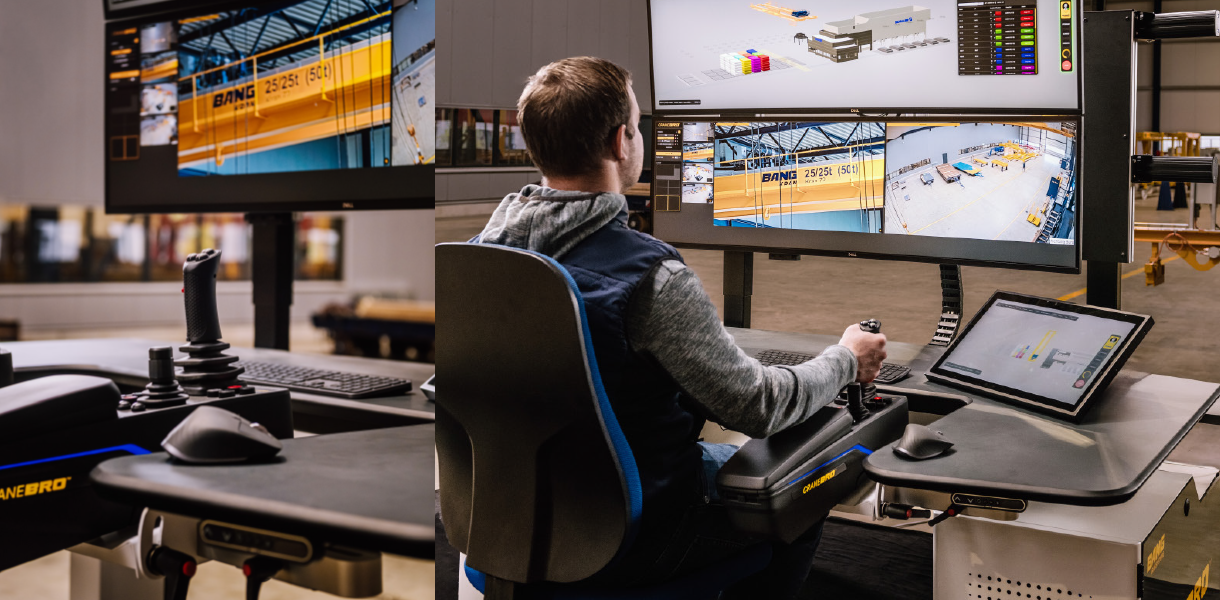

    CraneBRO™
    BANG Remote Operating station

    bangkran cranebro operating station 1
    bangkran cranebro operating station 2

    With CraneBRO™ – the BANG Remote Operating Station – remote-controlled process cranes can be operated with the same or even higher productivity than cab-controlled cranes. Safe and consistent performance for efficient crane operation:

    • Ergonomic working environment
    • Easy integration
    • Higher productivity

    Die Hauptaufgabe des Bedieners besteht darin, die automatisierten Intralogistikprozesse zu starten und zu überwachen. CraneBRO™ kann im Dauerbetrieb aus einem gefahrenfreien und ergonomischen Arbeitsbereich heraus gesteuert werden. In Kombination mit CranoMatic™ – der ganzheitlichen Kranmanagement-Software von BANG Kransysteme – wird eine effizientere Nutzung des Krans erreicht, wodurch die Sicherheit erhöht und die Produktionsleistung positiv beeinflusst wird.

    Any to Any
    This principle enables the operator to log in to any connected crane from any linked workstation. This allows the crane to operate semi-autonomously, with the CraneBRO™ operator only becoming involved when manual intervention is required.

    Hazard-free working environment
    Optimal working conditions in a quiet, air-conditioned control room, together with comfortable RECARO™ operator seats, promote health and well-being. Height-adjustable and multi-position CraneBRO™ armrests from Gessmann provide additional ergonomic support. Shift changes are quick and easy – overall, the role of the crane operator becomes more versatile and flexible.

    Customised design
    CraneBRO™ is equipped with a bespoke HMI – from the software right through to the joysticks. Each remote workstation can be customised, including to match the customer’s corporate identity.

    Smart 360° CamView
    Strategically positioned cameras support CraneBRO™ operation and automatically track load movements. Monitors are arranged in an ergonomically optimal manner to enhance cognitive performance. Process-relevant information is displayed as a priority – for simple, fatigue-free and safe operation.

    Konnektivität
    CraneBRO™ not only enables the connection of different types of cranes, but also of various control systems and cranes from other manufacturers. Thanks to this open system, CraneBRO™ can serve as a central platform for all remote control applications across an entire plant.

    Technical specifications of the control console

    • CraneBRO™ armrests with premium ergonomics and multi-axis adjustment
    • Dimensions: 1,800 mm x 1,400 mm
    • Height-adjustable: 660–1,250 mm
    • Joysticks and PTC-Cam controllers as per customer requirements2 ventilated server
    • cabinets: 415 x 855 x 520 mmMonitor mounting system for up to 4 large curved panels, including Igus cable management
    • Cyber security: Every connection between CraneBRO™ and the crane system is secured by ‘security-by-design’ protocols such as PROFIsafe, OPC UA or SSL.
    • Real-time monitoring: Efficient networking and APIs ensure minimal delay between actual crane movement and the on-screen display – backed up by continuous latency checks.
    • Equipment identification checks: Ensure that the operator’s workstation is seamlessly connected to the selected crane.
    • CraneBRO™ can be flexibly adapted to customer-specific standards and integrates seamlessly into existing infrastructures. The solution is compatible with any type of crane as well as all control and joystick variants. Combined with visualisation via CranoMatic™ and the option to integrate a crane and warehouse management system, this creates a comprehensive platform for efficient, scalable and future-proof crane processes.
  • bangkran cranomatic crane management software 1

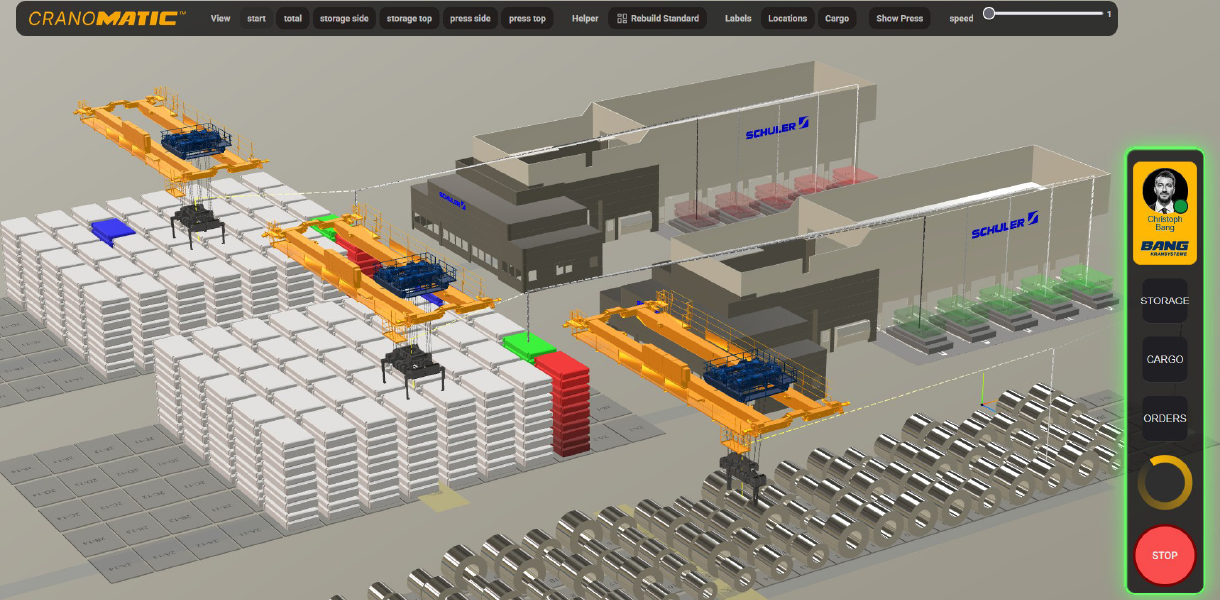

    CranoMatic™
    Maximum productivity in crane management and warehouse logistics

    bangkran cranomatic crane management software 1

    CranoMatic™: Premium efficiency and maximum productivity in crane management and warehouse logistics

    CranoMatic™ manages transport orders, optimises operating times and provides real-time information on plant and system status – for lean and transparent warehouse processes. The software can be integrated into existing cranes as well as fully integrated into the customer’s production systems.

    The system collects, stores and processes data to provide operators and production managers with relevant order information and meaningful statistics. CranoMatic™ was developed as an in-house solution and enables seamless integration into the control systems (PLCs) of process cranes.

    Furthermore, CranoMatic™ is specifically designed for the management of automated warehouses, in particular for:

    • Tool storage (die cranes with grabs)

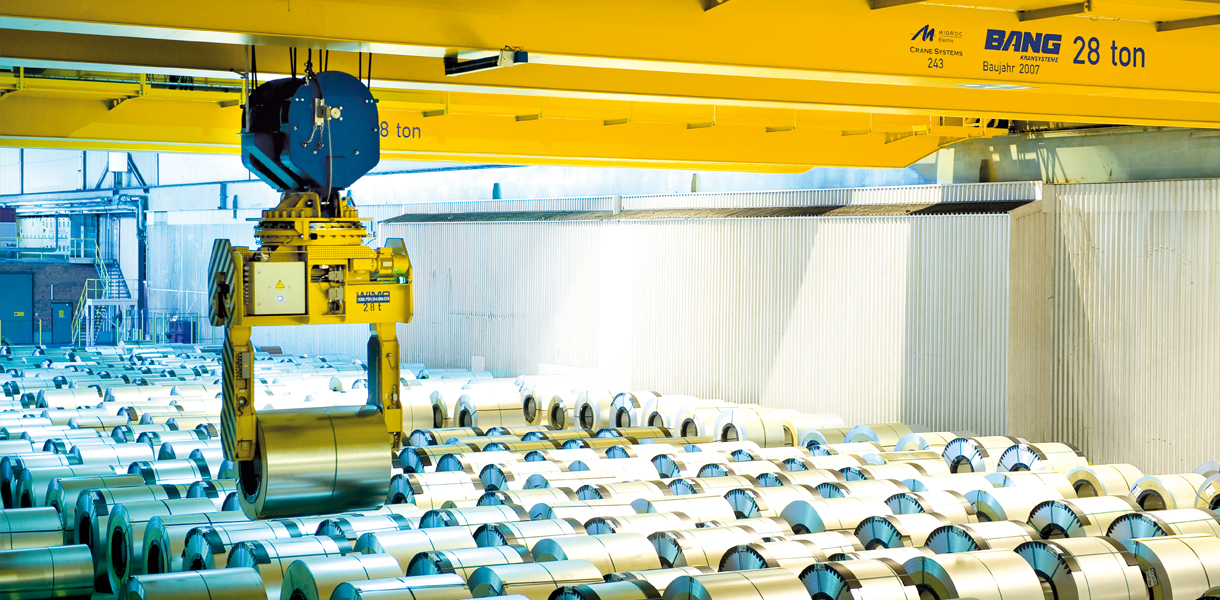

    • Coil storage (cranes with coil clamps or magnets)
    • Paper roll storage (cranes with mechanical grabs or vacuum lifters)
    • KONRAD, CASTOR® or CONSTOR® containers in nuclear power stations (cranes with spreaders)

    Key functions

    • No-fly zones: Definition of areas which the crane must not enter. CranoMatic™ automatically adjusts the travel paths to efficiently navigate around obstacles

    • Target positioning: Automatic movement to stored or dynamically generated target positions, e.g. working, parking or maintenance positions – quickly, precisely and reproducibly.

    • Operating zones: The crane moves exclusively within defined areas (e.g. warehouse or production) and uses pre-set waypoints

    • Hook centring: Automatic alignment of the bridge and trolley above the hook – for precise, fast and safe loading and unloading of loads.

    • Relative positioning (inching): Incremental movement relative to the crane’s current position to approach target points with precision.

    • Efficiency Sync: Synchronised movement of all crane axes so that they reach their destination simultaneously. The slowest axis determines the travel time, whilst all others adjust their speed accordingly – ensuring energy-efficient, gentle and precise operations

    • Path Following: Precise tracking of predefined paths, e.g. for safe passage through confined spaces.

    • Manuatic™: Seamless switching between manual, semi-automatic and fully automatic operation via a central user interface.

    • Active Anti-Sway: Camera-based, automatic sway damping through continuous measurement of the rope angle – for faster cycle times and a reduced risk of collision.
    • Enhanced safety for plant, loads and personnel, whilst boosting productivity and reducing errors
    • Tool changes up to 60 per cent faster compared with manual operation
    • CranoMatic™ enables the optimised use of existing storage space and maximises capacity within a limited area. Tools can be stored on up to six levels, coils on up to three levels, and paper rolls can be efficiently organised at storage heights of up to 15 metres. This ensures the best possible use of the existing infrastructure and reduces the need for additional space.
    • Reorganisation of warehouse structures reduces cycle times during production peaks and enables higher throughput whilst increasing storage capacity
    • Higher material throughput with optimal use of space
    • More reliable and predictable processes
    • Reduced operating costs
    • Reduced fatigue among operating staff

Countless BANG crane systems around the world
are performing their duties reliably.

  • bangkran produkte 2

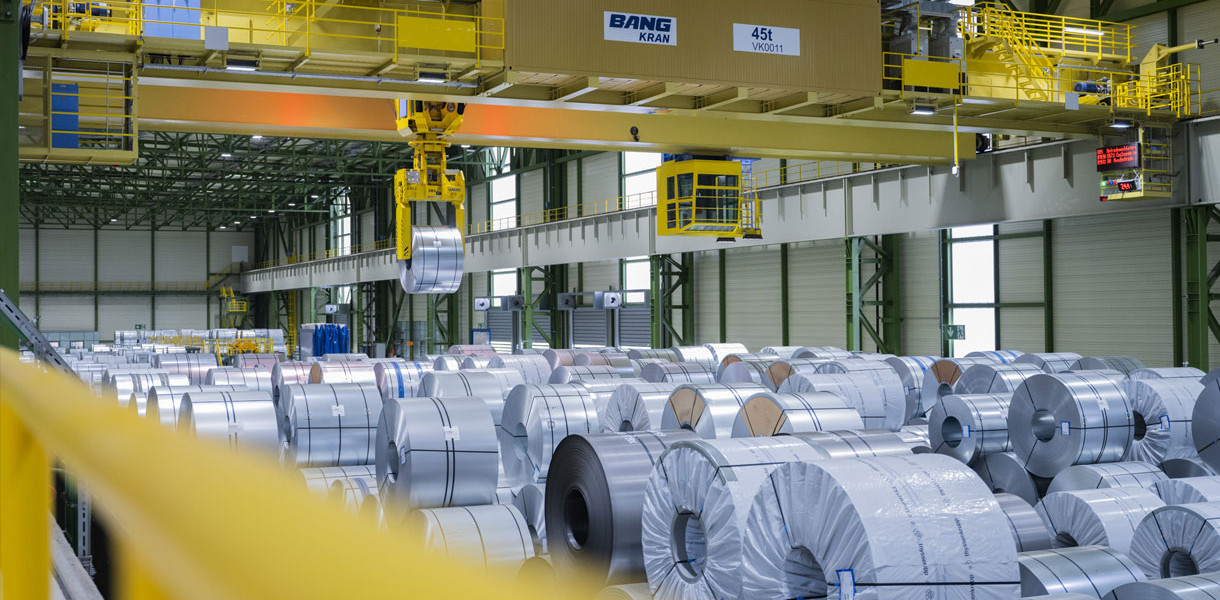

    Steel construction:
    Unrivalled resilience and excellence.

    bangkran produkte 2
    bangkran stahlbau coil 1
    bangkran stahlbau coil 2

    »Expertise in the steel fabrication of cranes means manufacturing complex product variants quickly and without compromising on quality. To achieve this, we have state-of-the-art technology and a motivated and highly skilled team at our disposal.«

    Gregor Neudel, Welding Supervisor, Steel Construction, BANG Kransysteme

    Whether in nature or engineering – a complex structure is inconceivable without a stabilising framework. With this in mind, BANG Crane Systems relies on robust solutions produced in its own steelworks. BANG cranes are manufactured from sophisticated precision components. Our ability to process high-quality structural steels ensures the wide range of applications for our crane systems.

    Customers of BANG Crane Systems can rely on comprehensive expertise and the highest quality in cutting, fabrication, assembly and preservation. By manufacturing all steel structures in-house, BANG Crane Systems meets the high standards demanded of our products. Seamless quality management in accordance with DIN EN 1090 ensures continuous quality control throughout the entire manufacturing process.

    The new steel fabrication plant on the BANG Crane Campus is equipped with the latest machinery. A flame-cutting system featuring oxy-fuel and 3D plasma technology enables fast and precise cutting with optimum weld preparation. All sheets and sections are cleaned using a modern continuous blasting system.

    • Before further processing, the components are prepared using a straightening roller to ensure that the most stringent dimensional tolerances are met. In the shot blasting hall (30.0 x 10.0 x 8.0 m), the complex large components are thoroughly cleaned prior to coating.
    • The new paint booth (40.0 x 10.0 x 8.0 m) operates in accordance with the highest environmental and health and safety standards and is certified accordingly. The workplace lighting, providing 5,000 lux, guarantees the best conditions for the highest quality.
    • High-quality industrial coatings are applied under specified environmental conditions. This guarantees durability even in harsh working environments.
  • bangkran produkte 1

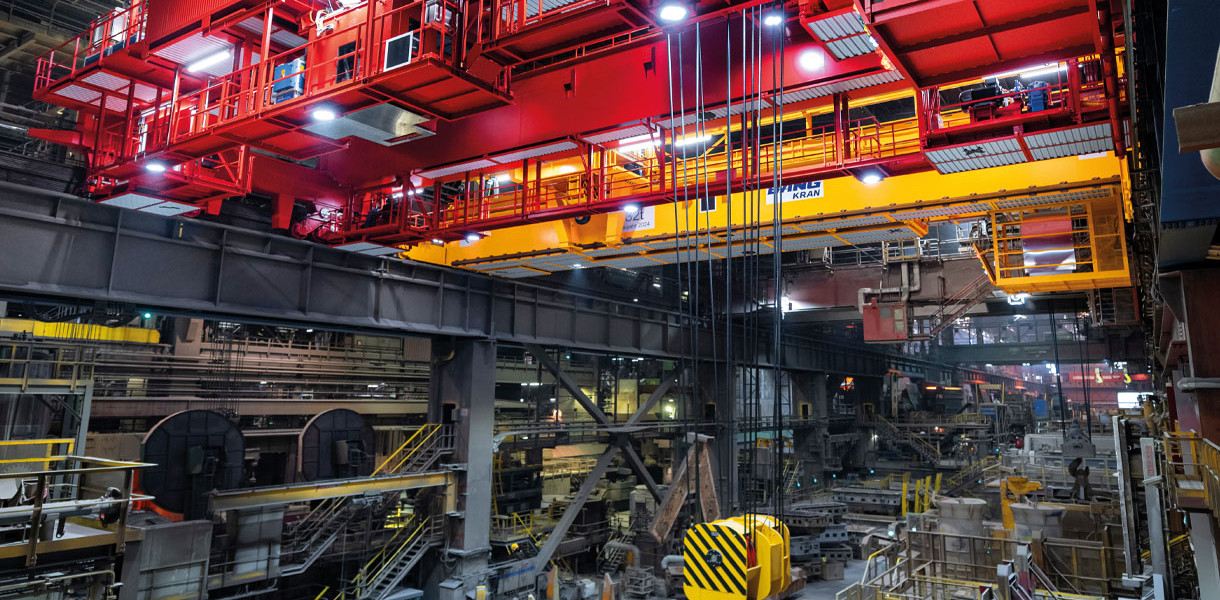

    Metal industry:
    The right solution for every load.

    bangkran produkte 1
    bangkran metallindustrie 3
    bangkran stahlbau coil 1
    bangkran home slide 5
    bangkran metallindustrie 2
    bangkran stahlbau coil 2
    bangkran metallindustrie 1

    »Our process cranes impress our customers with their safety, quality and reliability. For us, crane construction is not just about lifting loads, but about finding viable solutions.«

    Toni Müller, Quality, BANG Kransysteme

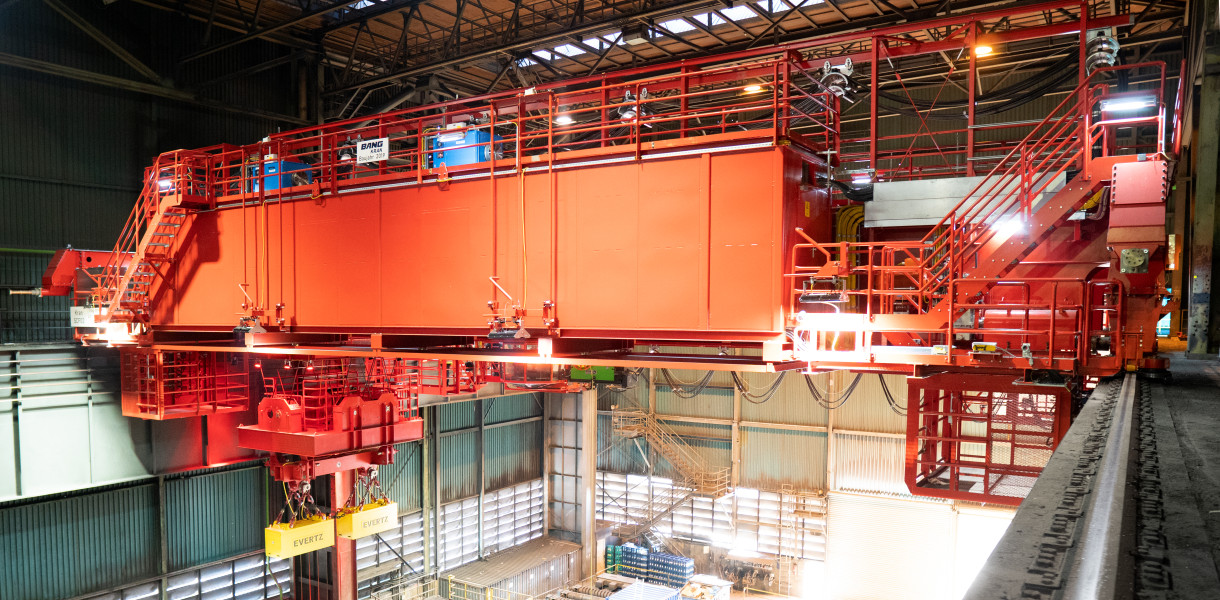

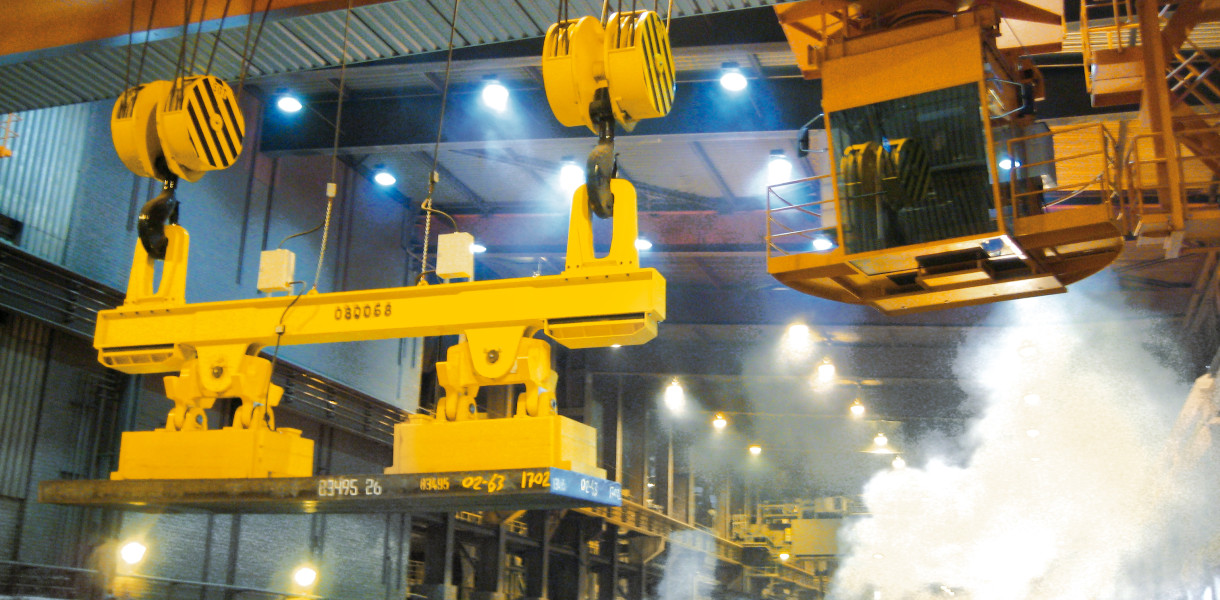

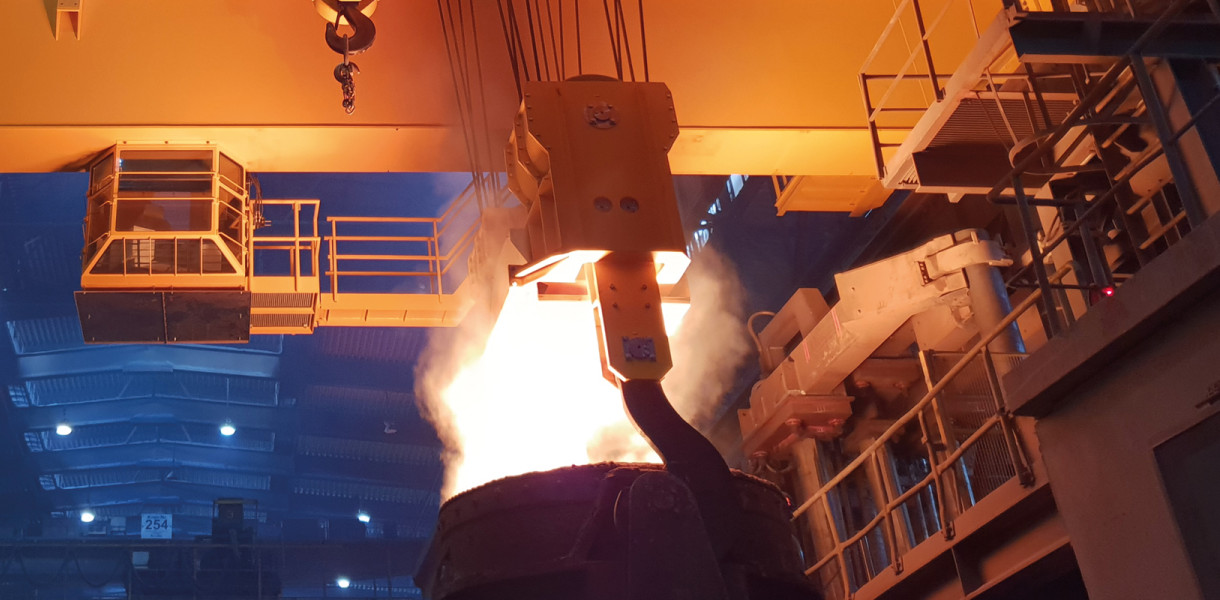

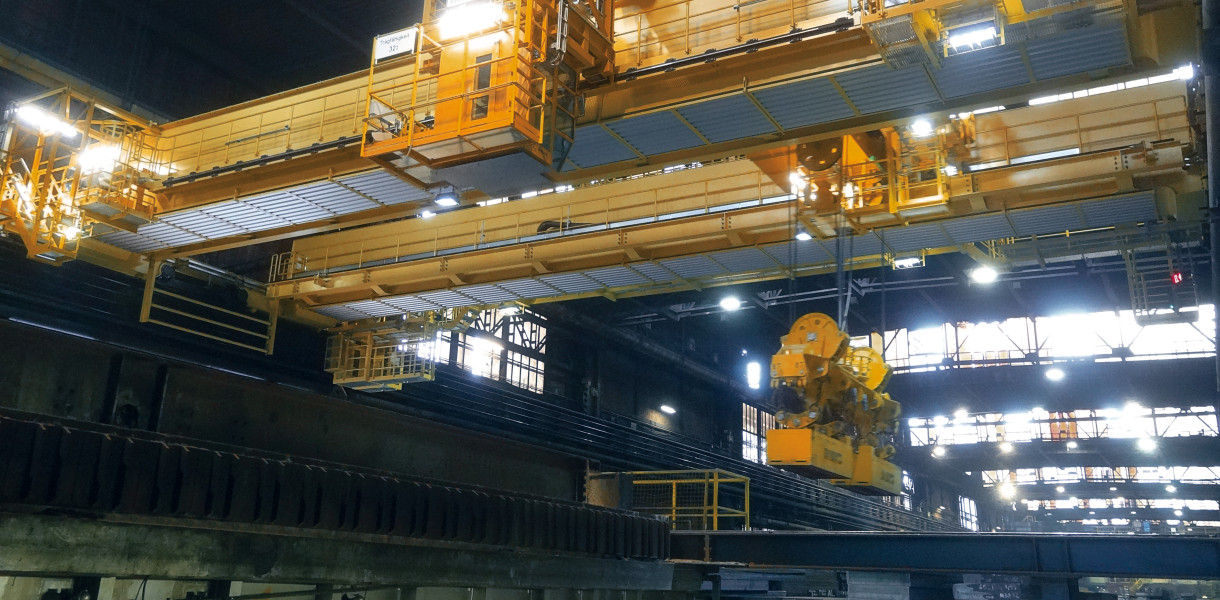

    In hardly any other sector is the handling of loads as varied as in the metal industry. In internal material flow, a wide variety of goods must be moved: from scrap and molten metal to slabs and coils. The range of weights, shapes and material states is vast. This is where BANG Kransysteme specialises.

    Process cranes from BANG Kransysteme, for example, act as slab cranes to form the central interface between the steelworks and the rolling mill. When handling heavy loads, swing-free load transport is paramount to guaranteeing safety and efficiency. This is precisely what our sophisticated rope-tensioned hoisting units or swing control systems deliver.

    BANG crane systems are complemented by useful safety features: video technology, a reversing camera, positioning aids and collision protection. These systems are networked efficiently and in a maintenance-friendly manner via Profibus and ProfiNet communication.

    Whether in nature or engineering – a complex structure is inconceivable without a stabilising framework. With this in mind, BANG Crane Systems relies on robust solutions produced in its own steelworks. BANG cranes are manufactured from sophisticated precision components. Our ability to process high-quality structural steels ensures the wide range of applications for our crane systems.

    Customers of BANG Crane Systems can rely on comprehensive expertise and the highest quality in cutting, fabrication, assembly and preservation. By manufacturing all steel structures in-house, BANG Crane Systems meets the high standards demanded of our products. Seamless quality management in accordance with DIN EN 1090 ensures continuous quality control throughout the entire manufacturing process.

    The new steel fabrication plant on the BANG Crane Campus is equipped with the latest machinery. A flame-cutting system featuring oxy-fuel and 3D plasma technology enables fast and precise cutting with optimum weld seam preparation. All sheets and sections are cleaned using a modern continuous shot blasting system

    • Before further processing, the components are prepared using a straightening roller to ensure that the most stringent dimensional tolerances are met. In the blasting hall (30.0 x 10.0 x 8.0 m), the complex large components are thoroughly cleaned prior to coating.
    • The new paint booth (30.0 x 10.0 x 8.0 m) operates in accordance with the highest environmental and health and safety standards and is certified accordingly. The workplace lighting, providing 5,000 lux, guarantees the best possible conditions for the highest quality.
    • High-quality industrial coatings are applied under specified environmental conditions. This guarantees durability even in harsh working environments.

    Our product range for the metalworking industry:
    Built to withstand continuous operation: top performance under extreme operating conditions. In the metalworking industry, a BANG crane demonstrates the outstanding performance it can deliver in continuous operation. No matter what loads need to be moved, BANG cranes carry out their tasks persistently, safely and reliably, even under harsh operating conditions. Sophisticated designs and state-of-the-art electric drive technology, combined with the use of high-quality components, guarantee this.

    BANG steelworks cranes operate on a three-shift basis. With their high load rating, they operate just as reliably in dusty environments as they do in extreme heat. Components such as air-conditioned control cabs, switchgear containers and heat shields form part of the extensive range of specialist equipment available.

    • Billet transport cranes
    • Loading cranes

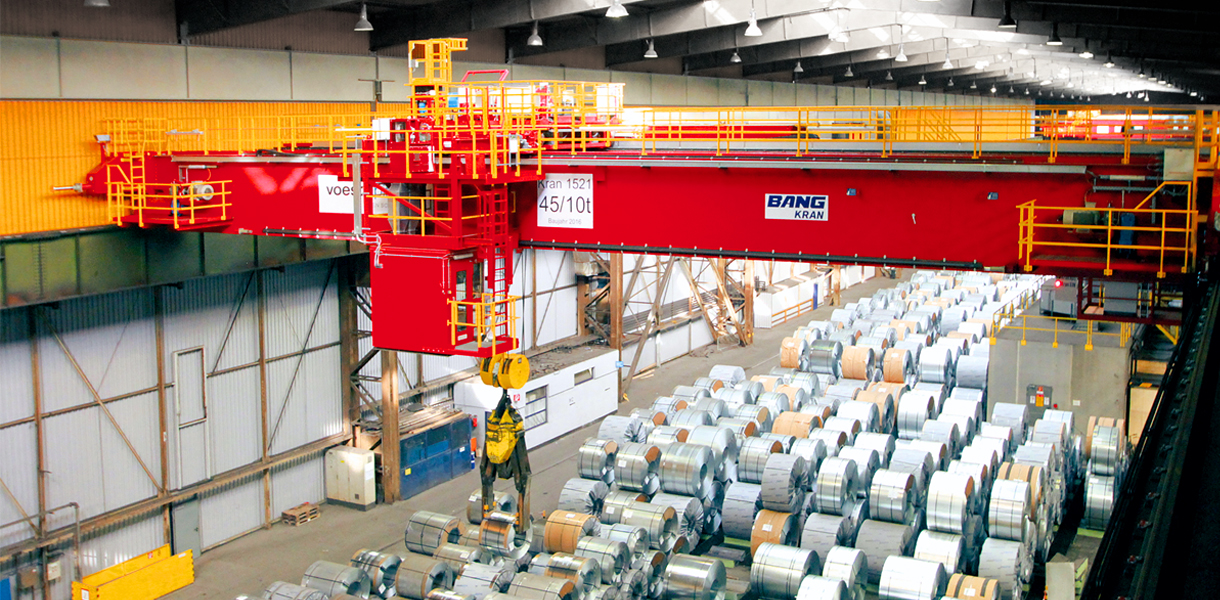

    • Coil transport cranes
    • Sheet metal handling cranes
    • Tapping cranes for blast furnaces
    • Scrap cranes/grab cranes
    • Roll-change cranes
  • bangkran automotive 1

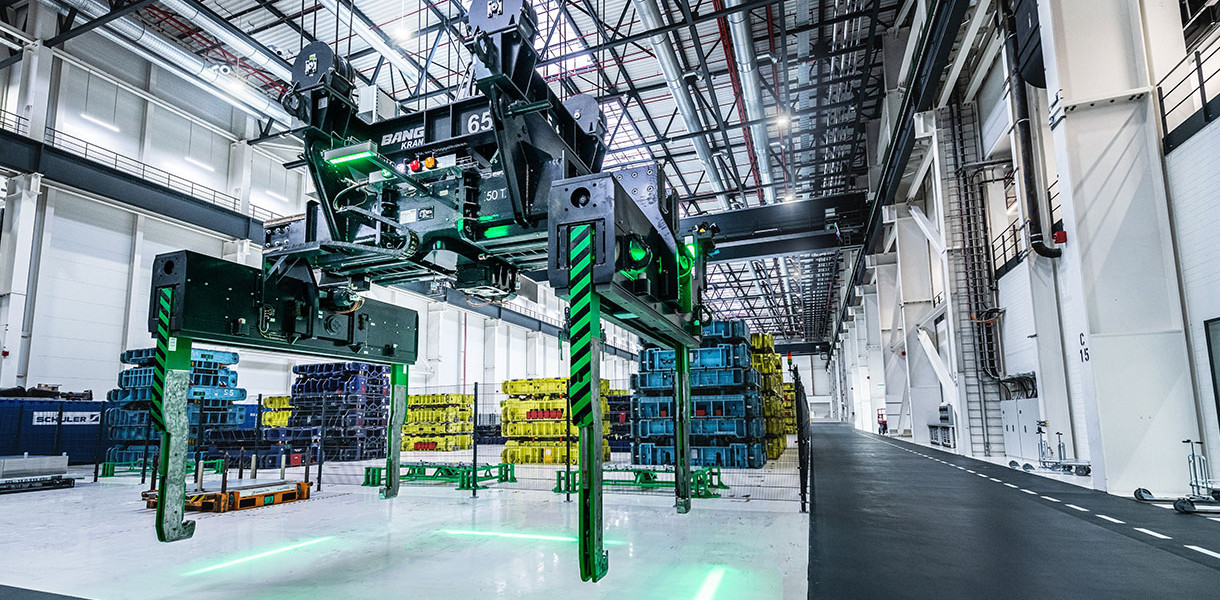

    Automotive industry:
    Cost-effectiveness and precision in automotive engineering.

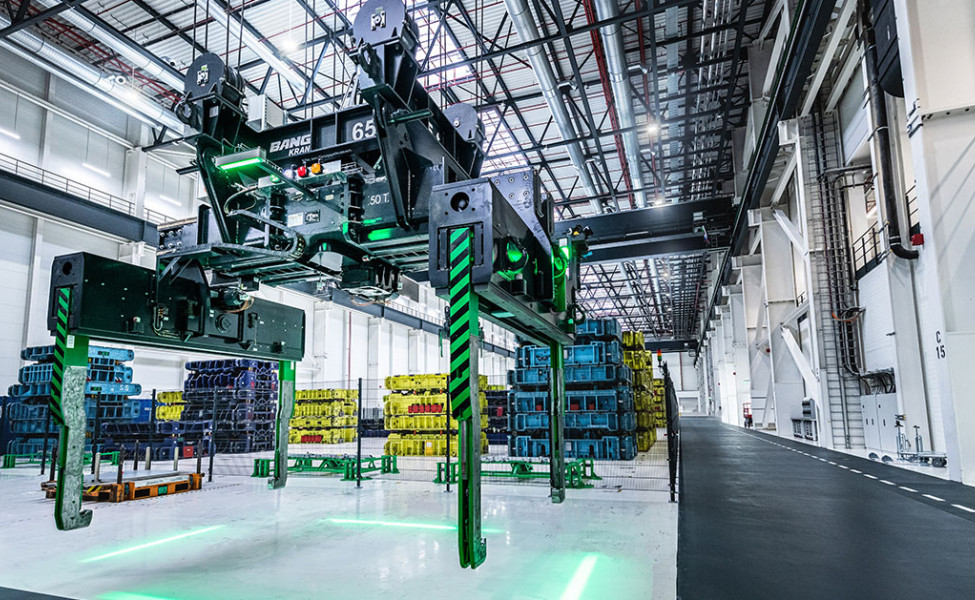

    bangkran automotive 2

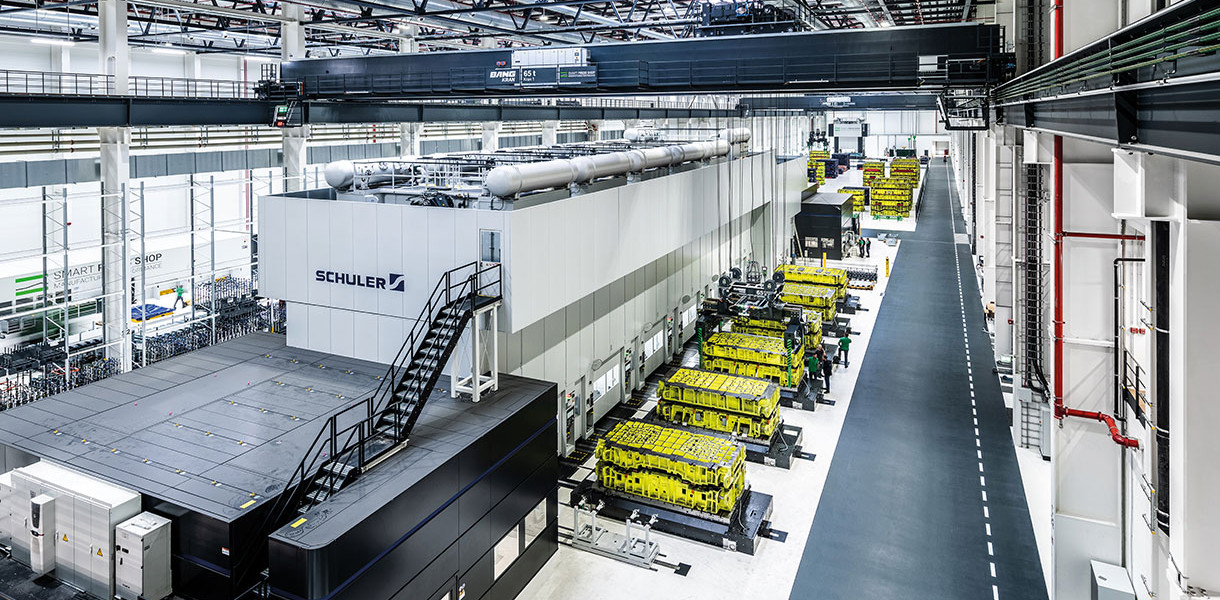

    bangkran automotive 1
    bangkran home slide 1
    bangkran home slide 3

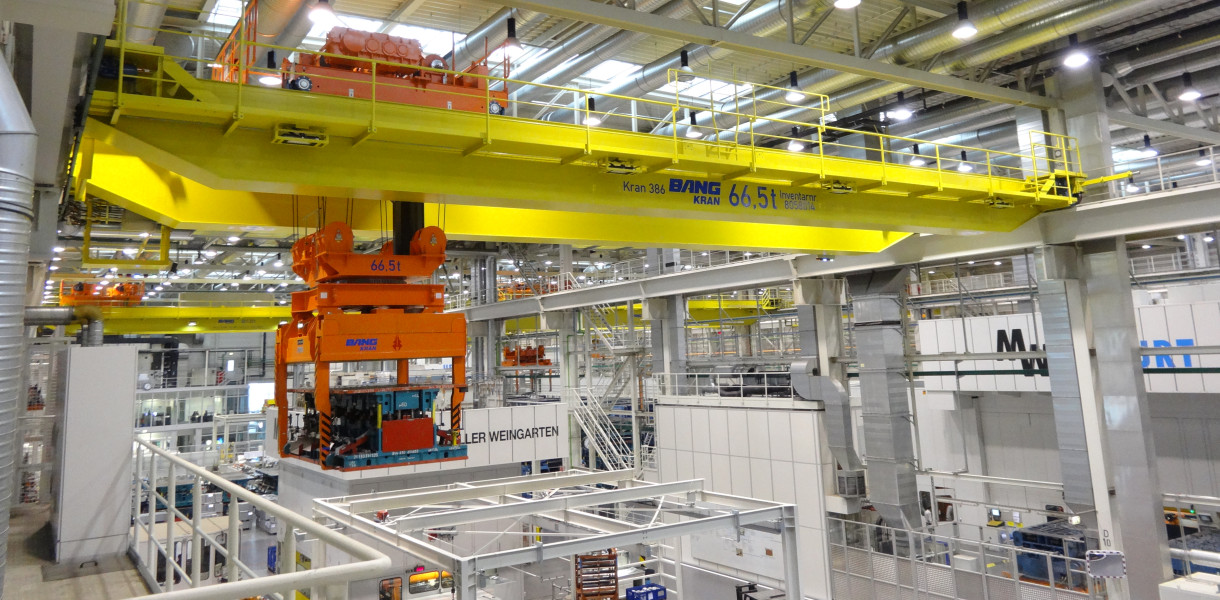

    AUDI Ingolstadt Werkzeugtransportkran

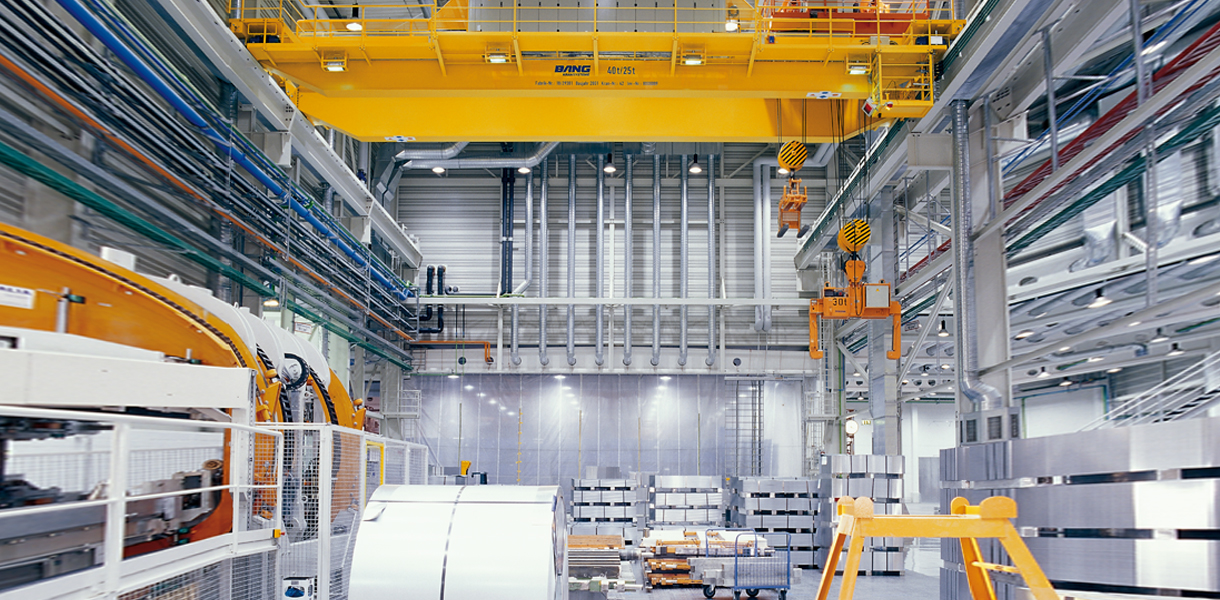

    bangkran automobilindustrie 3
    bangkran automobilindustrie 2

    »The growing variety of models in the automotive industry requires rapid changeover processes in the press shop. With our automatic tool transport crane, we meet our customers’ exact requirements for safe and fast processes with extremely high reliability.«

    Peter Knösel, Head of Sales, BANG Kransysteme

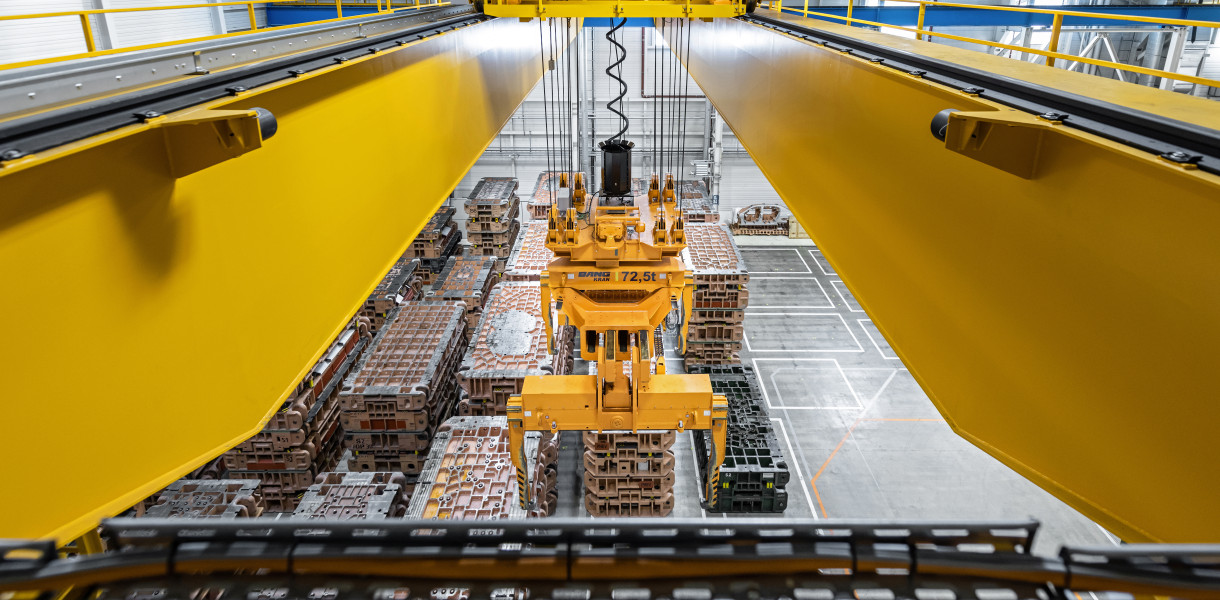

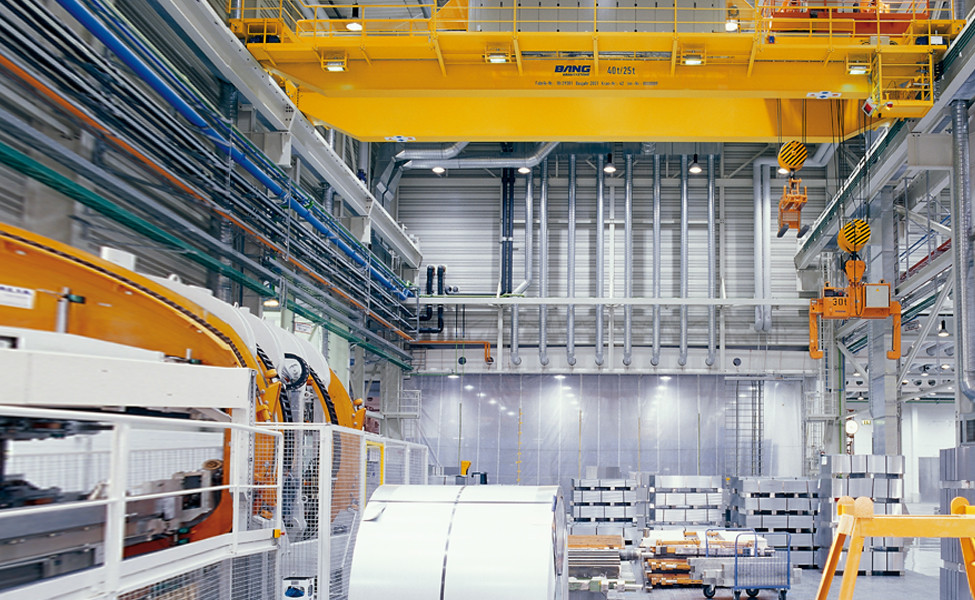

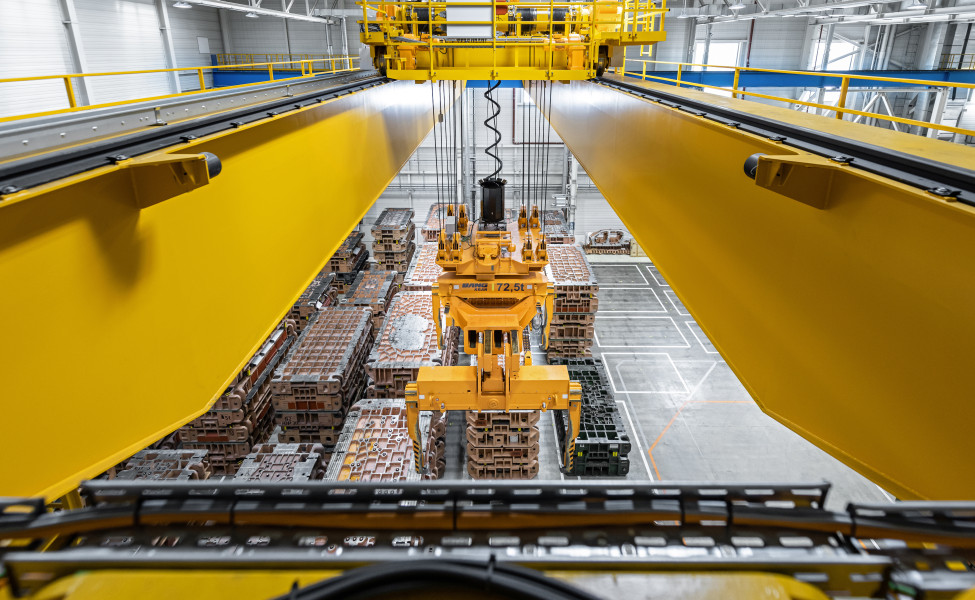

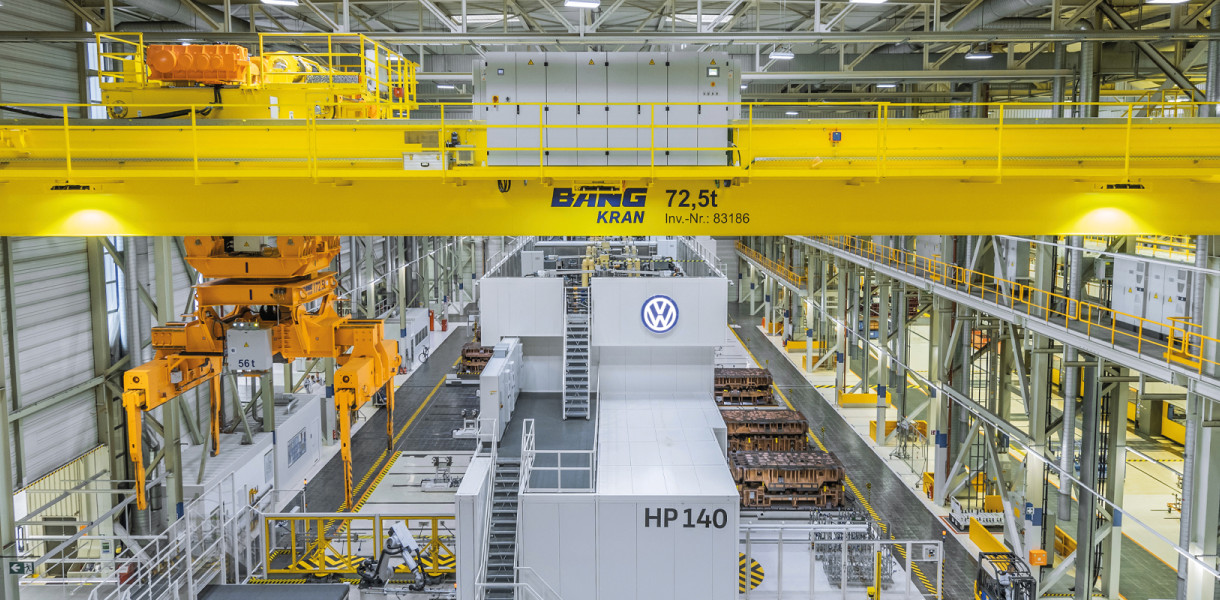

    The automotive industry reflects the spirit of our times. The entire manufacturing process is synchronised to tight timeframes. Speed, cost-effectiveness, reliability, precision and a high level of safety are of paramount importance in production processes. BANG cranes do not merely keep pace with production. They are so efficient that they can also optimise and accelerate the production cycle.

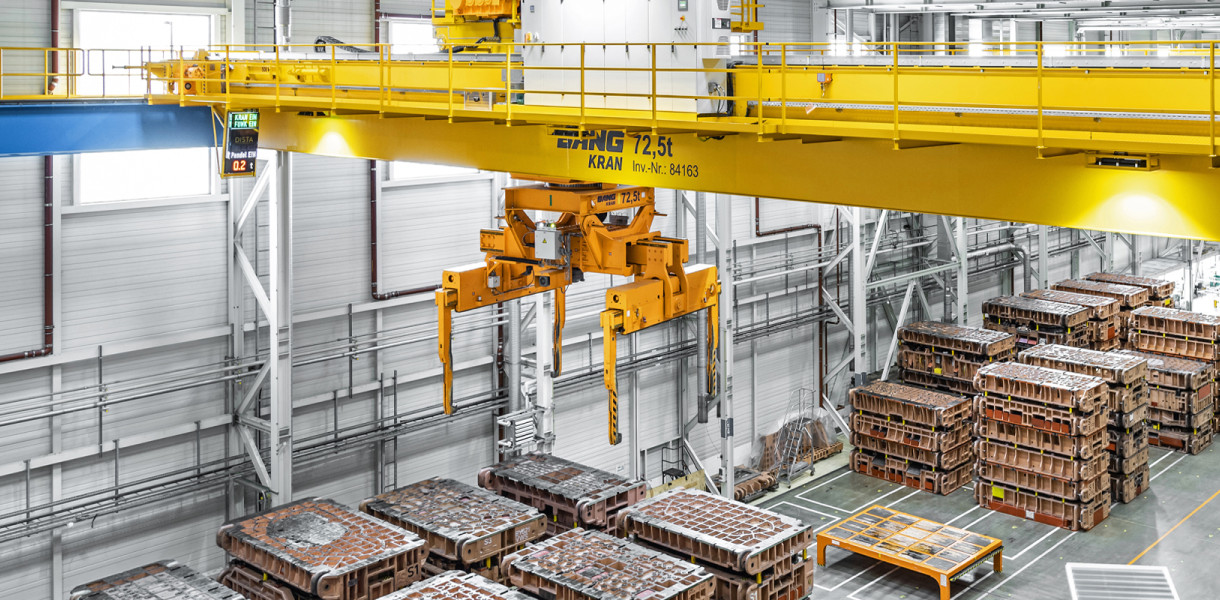

    BANG cranes demonstrate their strengths, for example, when transporting press tools between the warehouse and the press line. The efficiency of these production areas in automotive manufacturing depends directly on the crane’s handling capacity and the precision of the tool gripper. BANG Crane Systems offers sophisticated technical concepts to efficiently automate set-up and storage processes.

    An innovative system for pendulum control. Designed to neutralise any rotational pendulum movements that occur – and a two-channel monitored navigation control system enables the bridge crane to travel safely in narrow aisles close to the press.

    • Precise, pendulum-controlled automatic movements enable rapid movement to all target positions. The tool gripper’s pick-up and set-down positions are achieved with positioning accuracy in the millimetre range.
    • Precise travel paths within the space and intelligent, load-dependent speed control help to optimise set-up times in the press shop – something that conventional crane systems can only dream of. Perfectly matched wheel loads and wheelbases for the crane systems, in collaboration with the building designer, can lead to savings in the building structure and enable replacement investments that deliver higher performance.
    • The energy consumption of the drive system has also been optimised. When the load is lowered, the braking energy is fed back into the user’s mains supply.
    • Thanks to the higher power factors of the drive systems, BANG cranes have a lower proportion of reactive power in their energy balance. In addition, the use of floor spotlights and signal lights featuring LED technology helps to save energy.
  • bangkran atomindustrie 1

    Nuclear technology:
    Maximum security for decades.

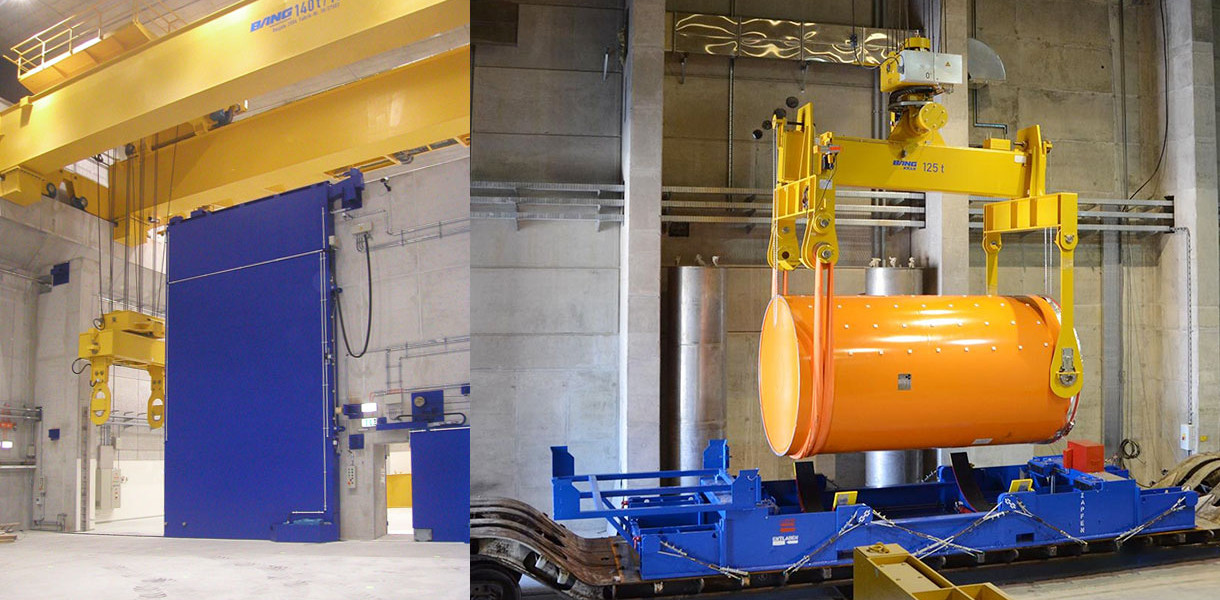

    bangkran nuklear 1
    bangkran atomindustrie 1

    »Manufacturing cranes for nuclear facilities requires not only technical expertise, but also an understanding of the specific requirements in conjunction with the applicable regulations.«

    Jan Ludwig, Project Manager, BANG Kransysteme

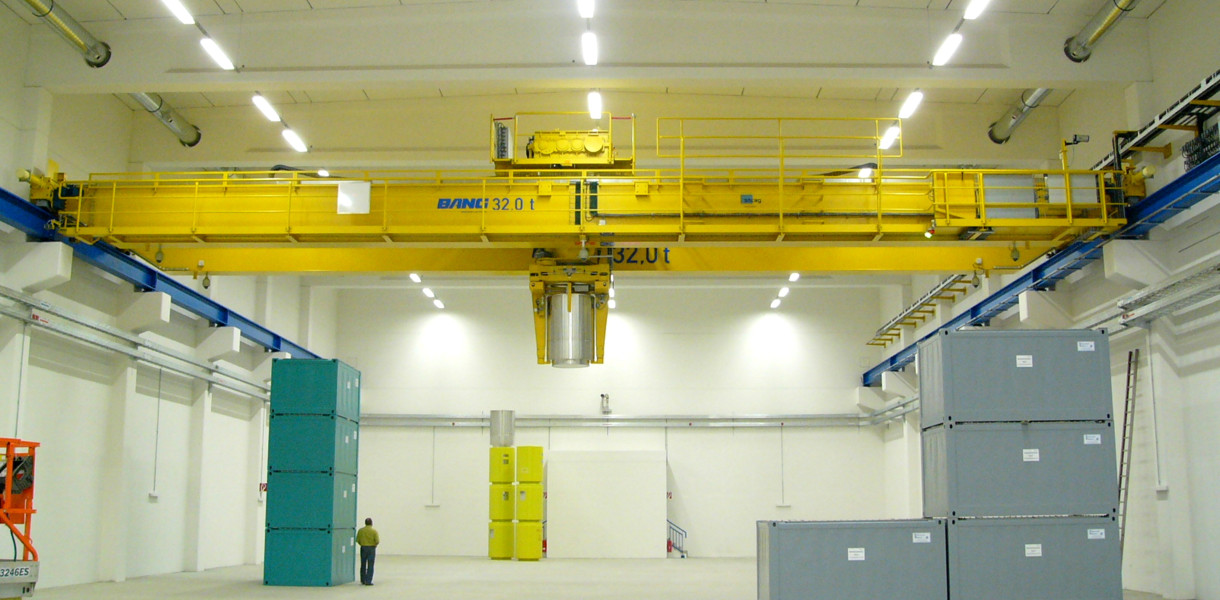

    We are accustomed to pushing the boundaries. BANG Crane Systems has the experience and expertise to manufacture cranes with the appropriate features for radiation-exposed environments. To this end, BANG Crane Systems has been certified to KTA 1401 since 2002.

    BANG nuclear cranes operate fully automatically and guarantee reliable performance over several decades. Strict safety requirements must be met when handling radioactive material, working in radiation protection zones or dismantling radiation-contaminated structures.

    BANG Crane Systems attaches great importance to the very highest quality in design and in the components used, as well as to compliance with the applicable regulations and standards.

    • Complete development: technical design, preparation of preliminary test documentation, manufacture, assembly, commissioning, documentation.
    • Fail-safe, redundant control systems for the continuous monitoring of the cranes.
    • Fault-tolerant data transmission via fibre-optic cables or IWLAN.
    • Carrying out retrofitting work in accordance with KTA regulations.
    • Maintenance and repairs carried out by specially trained service engineers (in accordance with the authorisation under Section 15 of the Radiation Protection Ordinance).
  • bangkran service 8

    Control technology:
    Agile movement through intelligent control.

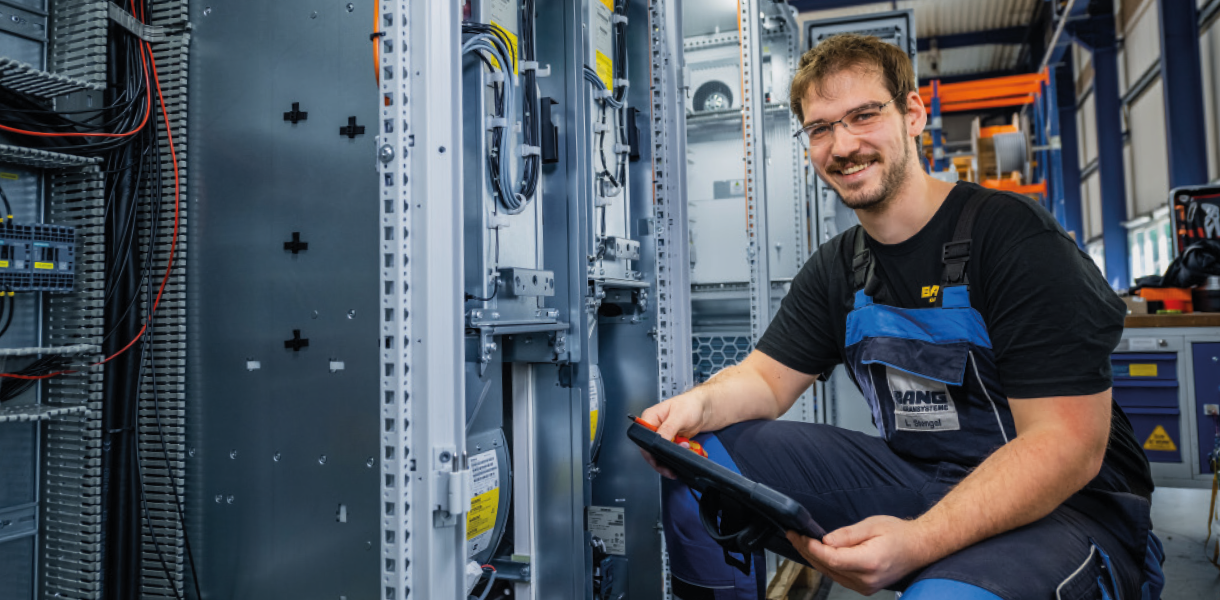

    bangkran service 8
    bang steuerungstechnik 04
    bang steuerungstechnik 01
    bang steuerungstechnik 02

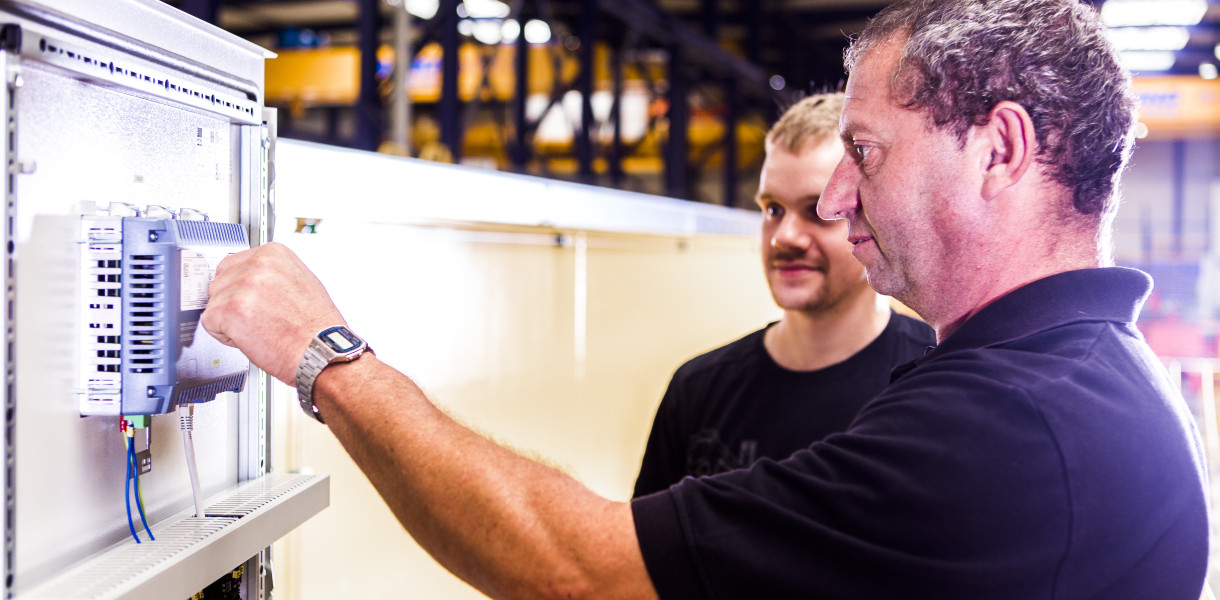

    bang steuerungstechnik 03

    »Top performance starts in the mind. The control system is the ‘brain’ of a process crane. Its fail-safe and fault-tolerant design is key to the safety and reliability of the plant and is crucial to the benefits for the customer.«

    Marcel Frank, Design and Electrical Engineering, BANG Kransysteme

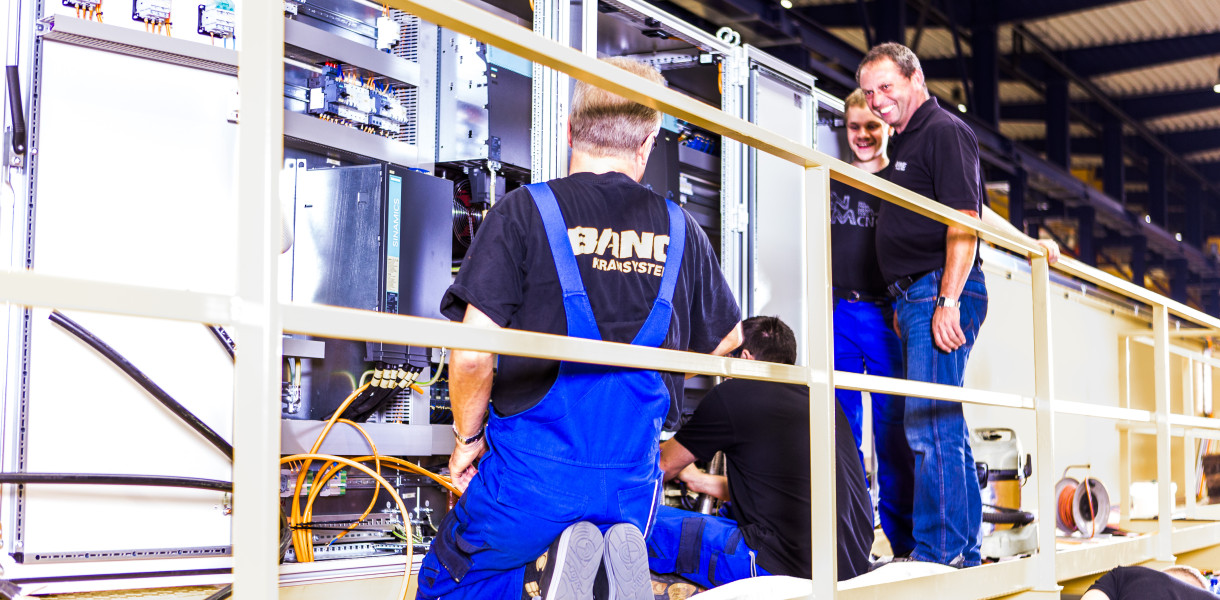

    Moving heavy loads with ease? The engineers at BANG Kransysteme do not see this as a contradiction, but rather as a challenge they take on with every new crane project.

    BANG Kransysteme develops bespoke solutions to ensure the intelligent interaction between industrial processes and process cranes. A key performance factor of the integrated process crane is the precision of its control system.

    BANG Crane Systems is certified as a SIEMENS Solution Partner and is therefore an industry pioneer in high-quality electric drive and control components, combined with the most advanced technology available on the market for control solutions. All modern control components can also be retrofitted into existing plants: radio remote controls, complete warehouse management systems and monitoring systems for operational supervision, as well as remote maintenance systems.

Process-integrated high-performance cranes.

  • High cost-effectiveness:

    Early collaboration between the client and the crane developer during the planning stage enables the cranes to be optimally designed.

    Development based on partnership ensures the creation of bespoke solutions that fully meet the customer’s specifications. BANG cranes guarantee the highest possible plant availability. They are cost-effective to operate throughout their entire life cycle, thanks to low energy consumption, minimal wear and tear, reduced need for spare parts, and optimised maintenance intervals.

  • High levels of safety and reliability:

    BANG cranes handle heavy loads in particularly demanding production areas and high-risk environments.

    The use of fail-safe control systems and high-quality electronic components, combined with a redundant design, ensures the highest levels of reliability and operational safety. BANG cranes comply with all national and international standards regarding health and safety and ergonomic workstations.

  • Speed and precision:

    Automatic control systems independently determine the shortest travel path and optimum speeds.

    State-of-the-art drive technology enables rapid acceleration and deceleration whilst recovering braking energy. Oscillation damping systems ensure precise and safe positioning. BANG cranes also make full use of the potential offered by automation.

  • Exceptional flexibility:

    BANG cranes can be customised for use with magnetic systems, vacuum lifters or tool grippers.

    The use of warehouse management software also enables the system to be tailored to specific logistics processes and optimised accordingly.

  • Naturally environmentally conscious:

    By feeding braking energy back into the grid, BANG cranes save electricity during operation.

    Thanks to the latest drive technology, energy is recovered when the load is lowered, rather than being used to heat up braking resistors. BANG crane systems also feature motors with energy efficiency classes that meet the current highest IEC standard.

    Energy-efficient LED technology is used for lighting. BANG cranes featuring this energy concept save up to 60% on electricity compared with conventional cranes. Energy-efficient process cranes make an active contribution to environmental protection through their reduced CO₂ emissions.

Call-back form

One team. One vision.

BANG cranes therefore meet the highest standards of performance under extreme conditions. BANG Crane Systems aims to develop the best crane solution for every specific requirement, in order to achieve a fast, safe and efficient flow of materials with the highest level of reliability. And this creates real competitive advantages for our customers.
