As a result, 80% of process crane faults can be identified immediately. Nearly 100% of occurring faults can be resolved remotely within a very short time, usually in cooperation with the customer’s local maintenance team.

Optional vibration monitoring of bearing points can identify potential damage before it results in unplanned system downtime. At the Crane Campus, a fully equipped 100-ton test crane is available for training maintenance personnel and service technicians.

Our goal is to enable our customers to operate safely every single day. The safe and correct execution of all work is our highest priority. In addition to safety, our crane service ensures maximum availability and optimal productivity throughout your processes.

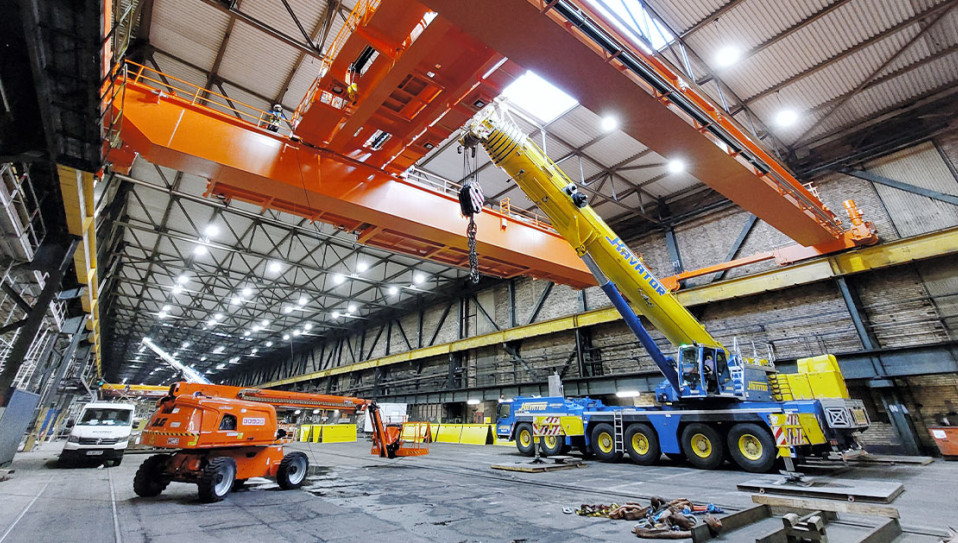

BANG Kransysteme provides these services not only for its own cranes, but also across multiple manufacturers and brands. We offer maintenance, repair and modernization services for a wide range of crane systems. Predictive maintenance and retrofitting provide cost-efficient alternatives and supplements to new capital investments.

Wire ropes used in crane systems are safety-critical components that are continuously exposed to high mechanical loads and therefore subject to wear. If regular inspections indicate that a wire rope has reached its discard criteria, continued operation of the system may present significant safety concerns.

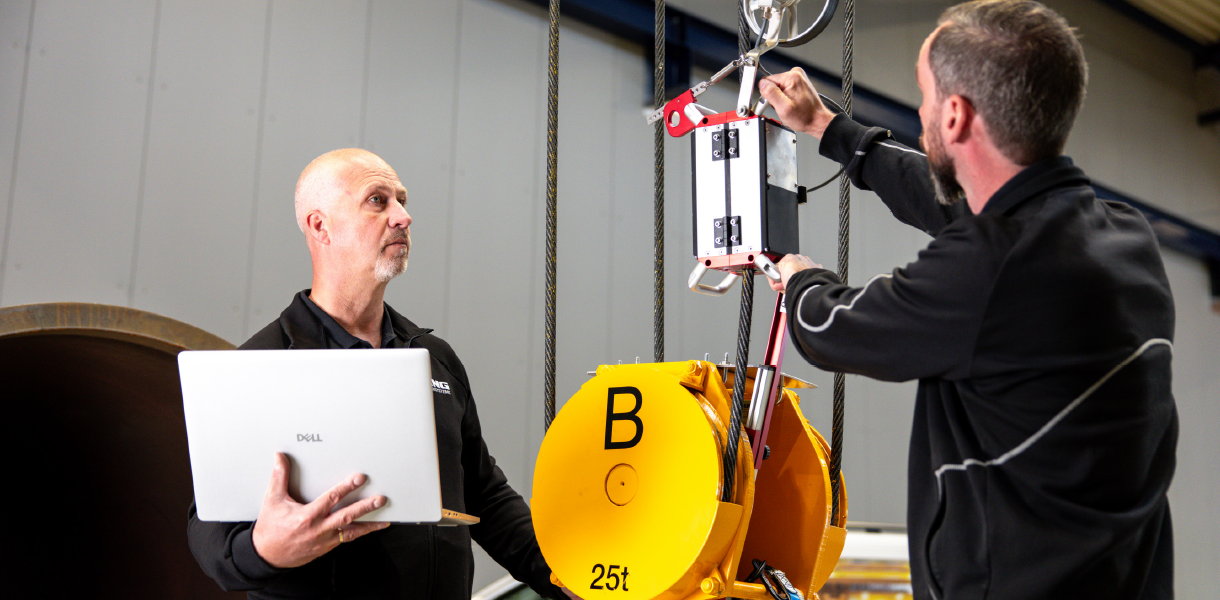

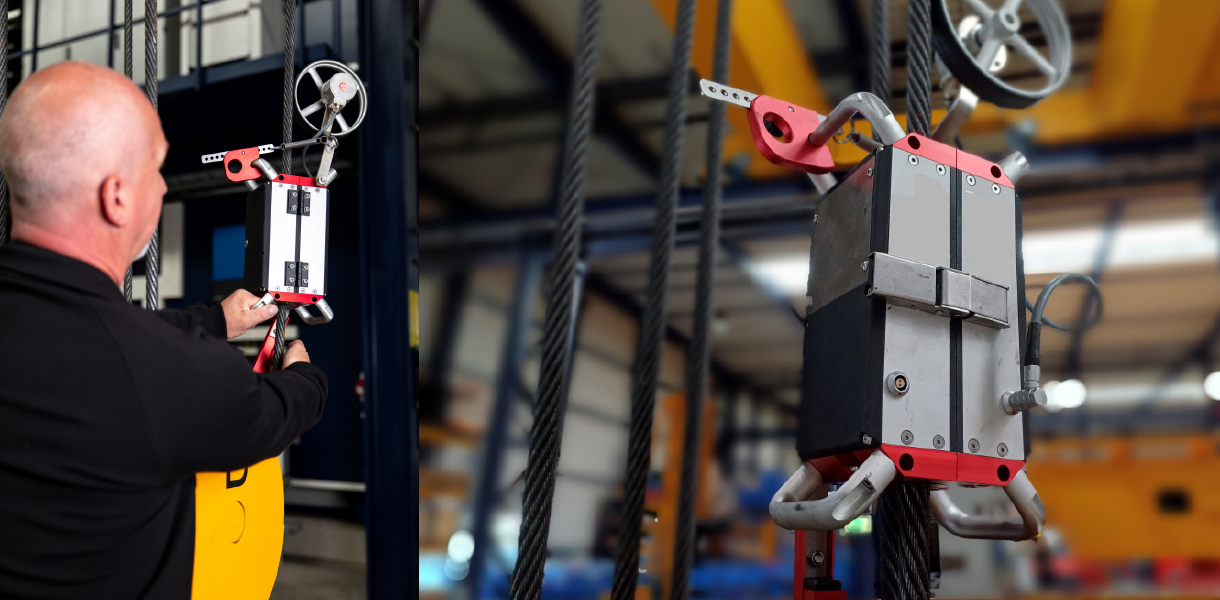

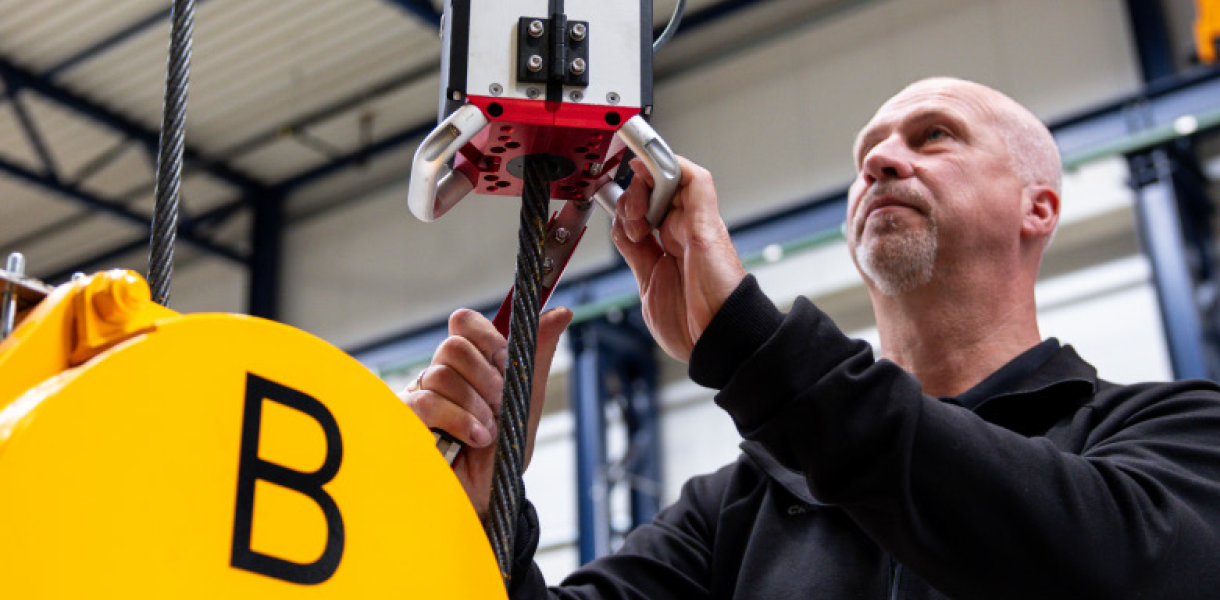

Magnetic inductive rope testing is the preferred method for the non-destructive inspection of steel wire ropes. It enables internal defects to be detected and helps determine whether a rope has reached its discard criteria in accordance with DIN ISO 4309, thereby supporting safe system operation.

In accordance with Section 26, Paragraph 1 of DGUV Regulation 52 “Cranes,” cranes must be inspected by a qualified person in accordance with DGUV Principle 309-001 as required by their operating conditions and usage, but at least once a year.

Contact us for individual consultation and the right RopeCheck service for your application. RopeCheck supports preventive maintenance, increases system safety and helps optimize operating processes.

How It Works

• Magnetization: The wire rope is magnetized to saturation using a magnetic field. Internal and external defects alter the magnetic field and generate leakage fields.
• Measurement: Sensors detect these leakage fields and transfer the data to measurement and analysis software.
• Analysis: The software evaluates the data, locates and classifies detected damage, and generates an inspection report.

Detectable Damage

• Internal and external wire breaks
• Internal and external corrosion
• Crushing and pinch points
• Notches and deformations
• Structural changes in the wire rope
